Uploads Game Plan

The Blueprint

File uploads in Node.js change the nature of how form data is submitted and processed over standard text parsing. Instead of just sending form URL encoded text, we are moving binary blobs of data alongside text inputs.

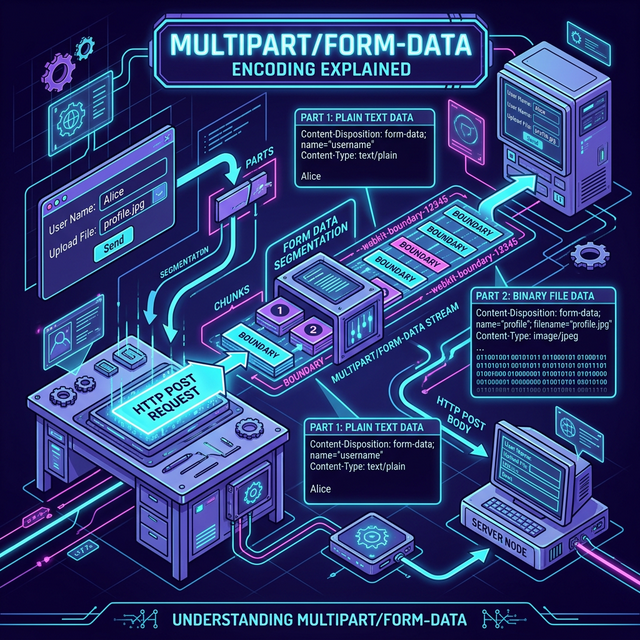

Fig 1: Multipart Form Data Encoding Explained

To handle a robust 1-to-many relationship (one project, many configurable projectImages), our goal is to build a decoupled file processing handler:

1. The File Processor

Instead of uploading a file while saving all other text inputs, we’ll handle file uploads as an independent operation on a dedicated “Manage Images” page associated with each project.

• We’ll separate the file upload process from the main project form to a specialized image upload form.
• We’ll select the physical file and submit it as a standalone form (to avoid the complexity of handling both file and text data in the same request).
• The backend will stream the file to disk storage, organizing it into a project-specific folder like /public/uploads/my-cool-project.
• The backend will reply with a redirect back to the same page with a success message and the image now displayed in the gallery.
• Later on, when we want to modify metadata (like accessibility tags) or delete an image, we’ll use asynchronous fetch requests without needing to re-upload the file!

2. The Relationship Mapping

With the image stored safely on the disk, our Project object needs the metadata mapped. Our administrative interface will support:

• Alt Tags: T.A. Watts insists on full accessibility markers.
• Captions: Optional text to display below the image.
• 1-N Images per project: Permitting multiple objects within the projectImages subdoc array.
• An isFeatured Flag: Enabling users to mark exactly one of the subdocuments as the thumbnail cover image for the project list page.
• The original filename: We’ll store the original filename so we can reference it later.
• A unique filename: We’ll store a unique filename so we never run into filename collisions.

Sorting

We could also store fields for sorting gallery images, but the above list is sufficient for our purposes.

REMEMBER: We must change our encoding to multipart/form-data in the form, otherwise the data stream collapses.

⏭ Next: Project Images As Embeds

Let’s look closely at how we will structure the Mongoose Schema to properly embed our new file metadata.
