Project Image Form

A Dedicated Project Image Admin Page

While we could adjust our main Project Form to handle file uploads, a cleaner, safer, and more user-friendly approach is to create a completely independent view strictly for managing a project’s images.

By decoupling the image form from the primary text data form, we eliminate the risk of accidentally overwriting or deleting images when a user updates basic fields like the project title.

1. The Gateway Button

First, we need a way for administrators to access this dedicated project image admin page. Open your views/admin/projects/projects-list.ejs file and add a “Manage Images” link next to the “Edit” button for each project:

<a href="/admin/projects/<%= project._id %>/images">Manage Images</a>
<a href="/admin/projects/<%= project._id %>/edit">Edit</a>

2. The Image Management View

Create a new file called project-image-form.ejs inside your views/admin/projects/ directory.

We will split this new view into two sections:

The Upload Form (for adding new images)
The Gallery (for viewing, modifying, or deleting existing images)

<div class="header">
  <h2>Image Gallery: <%= project.title %></h2>
  <a href="/admin/projects">Back to Projects</a>
</div>

<hr />

<!-- SECTION 1: THE UPLOAD FORM -->
<h3>Upload New Image</h3>

<form
  action="/admin/projects/<%= project.id %>/images?slug=<%= project.slug %>"
  method="POST"
  enctype="multipart/form-data"
>
  <label>
    Image File
    <input type="file" name="projectImage" accept="image/*" required />
  </label>

  <label>
    Alt Text
    <input
      type="text"
      name="altText"
      placeholder="Descriptive text for screen readers"
    />
  </label>

  <label>
    Caption
    <input type="text" name="caption" placeholder="Displayed under the image" />
  </label>

  <label>
    Featured Image
    <input type="checkbox" name="isFeatured" value="true" />
  </label>

  <button type="submit">Upload</button>
</form>

<hr />

<!-- SECTION 2: THE EXISTING IMAGE LIST -->
<h3>Existing Images</h3>

<div class="image-gallery">
  <% project.projectImages.forEach((img, index) => { %>
  <div
    class="image-card"
    style="display: flex; gap: 1rem; margin-bottom: 2rem; border: 1px solid #ccc; padding: 1rem;"
  >
    <!-- Thumbnail display -->
    <div class="image-preview" style="width: 200px;">
      <img
        src="/uploads/<%= project.slug %>/<%= img.filename %>"
        alt="<%= img.altText || 'Project Image' %>"
        style="max-width: 100%; height: auto;"
      />
      <% if (img.isFeatured) { %>
      <span
        style="background: gold; color: black; padding: 2px 8px; border-radius: 4px; display: inline-block; margin-top: 5px;"
      >
        Featured
      </span>
      <% } %>
    </div>

    <!-- Metadata & Controls (Placeholder for now) -->
    <div class="image-meta" style="flex-grow: 1;">
      <p><strong>Filename:</strong> <%= img.filename %></p>
      <p><strong>Alt Text:</strong> <%= img.altText || 'none' %></p>
      <p><strong>Caption:</strong> <%= img.caption || 'none' %></p>

      <div class="controls" style="margin-top: 1rem; display: flex; gap: 10px;">
        <button disabled>Edit Metadata</button>
        <button disabled>Delete Image</button>
      </div>
    </div>
  </div>
  <% }) %> <% if (project.projectImages.length === 0) { %>
  <p>No images uploaded yet.</p>
  <% } %>
</div>

If you forget enctype="multipart/form-data" on the upload form, the binary data will be ignored entirely. The request will reach the server, but Multer won’t be triggered, and your image will vanish into the ether!

Professor Solo

Why pass the slug in the query string?

When using multipart/form-data, Multer parses the incoming data sequentially from top to bottom. If you rely on a hidden <input>, Multer might not process it fast enough before the file upload stream begins. This causes a “race condition” where req.body.slug is undefined when Multer’s destination function needs to know where to save the file!

Passing identifiers via the Query String (?slug=...) ensures they are available instantly in req.query, guaranteeing Multer always has the correct folder path ready before it even looks at the file stream.

Extra Bits & Bytes

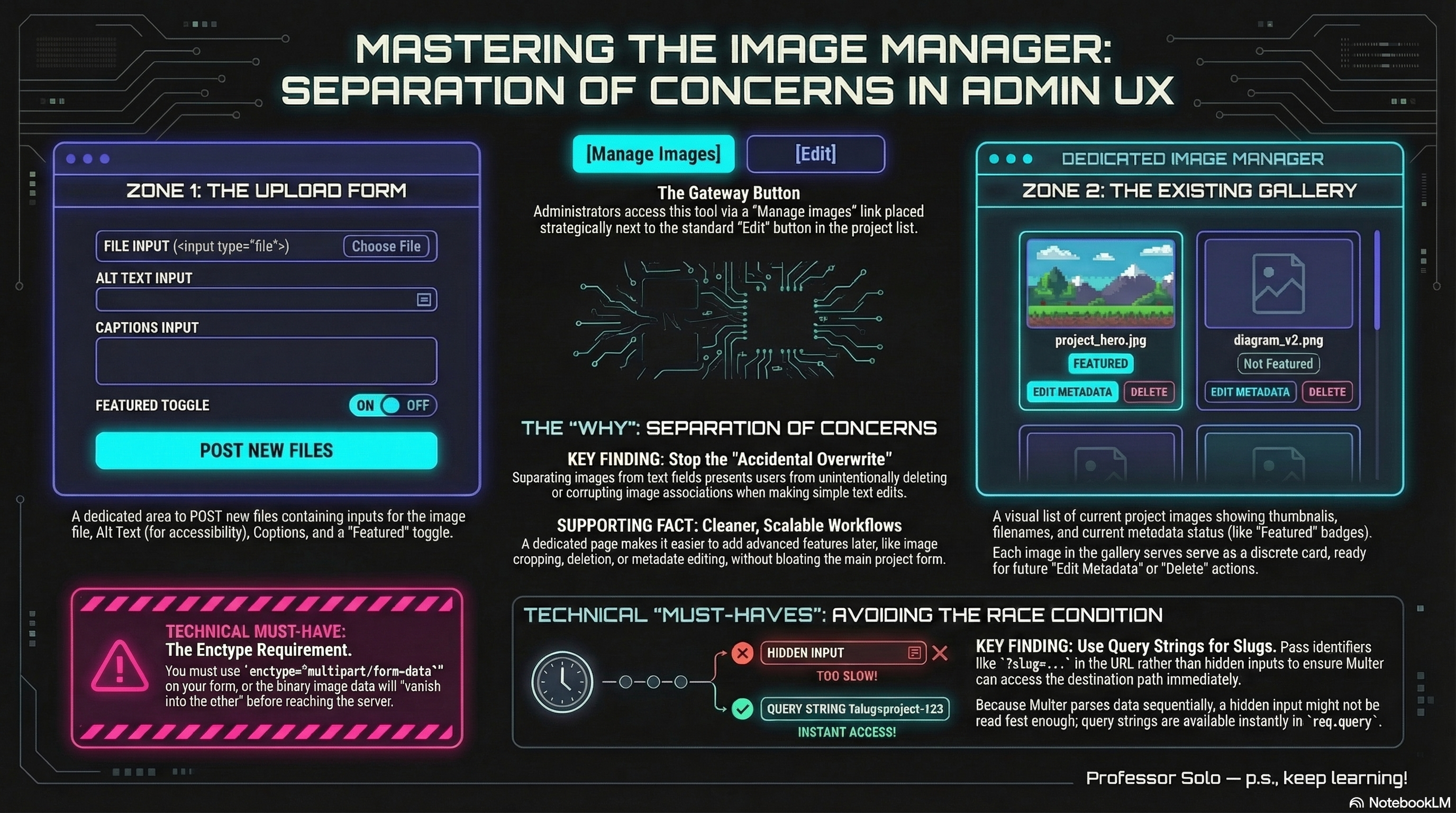

📘 Separation of Concerns (PNG)

⏭ Next: The Admin Upload Endpoint

Our project image form will send a multipart payload to /admin/projects/:projectId/images. Next, we need to create this dedicated endpoint in adminRouter.js, bind our Multer middleware, and set up a GET route to render this new page!
